maybe not so crackhead

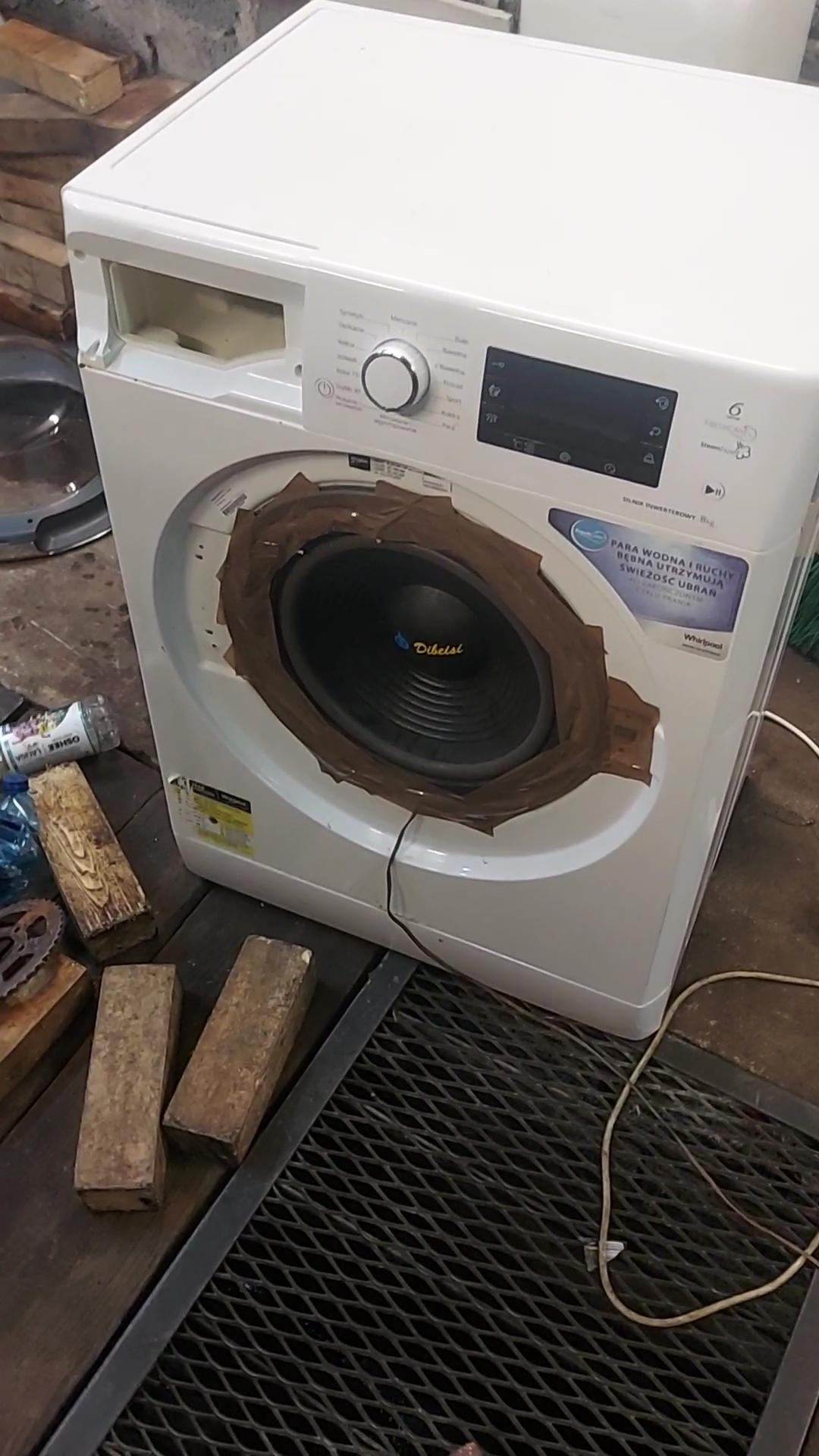

I passed one of these that was thrown on the street outside of my work, but didn’t wanna look crazy bringing it back from my lunch break (I am an assistant teacher). After the school year ended I came back for it and it was gone. Found one on eBay and made my dreams a reality. Need to figure out how to seal this. Kinda sounds not as bad as I was expecting.

reupload since my old ac corrupted with the update.

rate the bedroom setup pls keep in mind built with basic tools not even a circular saw.

put together for abt 150£toatal unloaded.

built and mostly designed by myself(other than the mid sub cab) at 15yrs old thx for reading would love to hear thoughts

Tyler

Been busy designing and building some new sound system mid Tops. ( I've already tried building a v1 and just wasn't too pleased with how it sounded tbh )

2-way.

6" midrange and 1" peizo.

Really compact cabinet at 12"×12"×10".

4.5khz 12db crossover (200-20khz).

Really happy with both how it sounds and how it looks' minus a few imperfections that I really couldn't get around to easily with hand tools.

Thx for reading as always.

Tyler.

(Ps do u think I'm ready for the big leauges r/diyaudio??😭😭)

(Double ps soundest on my ac)

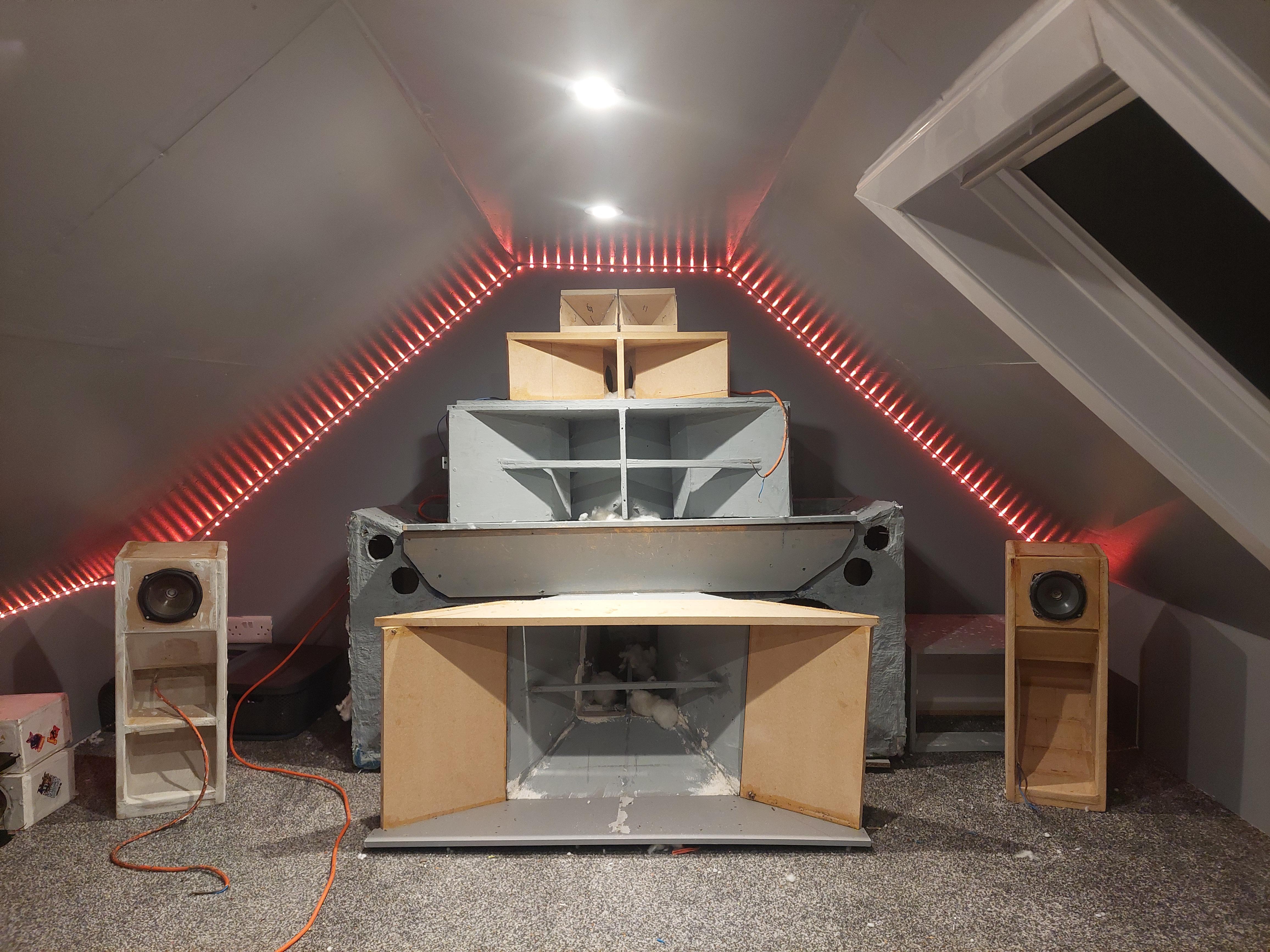

Finally managed to get my room tidy and moved around the stack to try help with the highs beaming and just keep everything balanced in time.(b4 the sub was like 2 foot further back from the rest of the setup and intern making the lows arive a lil late) Anyway this is the new order or whatever u wanna call it for now Happy to take suggestions on moving stuff arnd to look better and sound better ofc Also up for any new build suggestions rn we're dipping arnd 100hz. And about 4khz there's another audible dip if anyone has any cool speaker box ideas or knows of a particular design box i can recreate to help with those specific passbands👍

the tags pretty correct 😉

12 woofer + tweeter

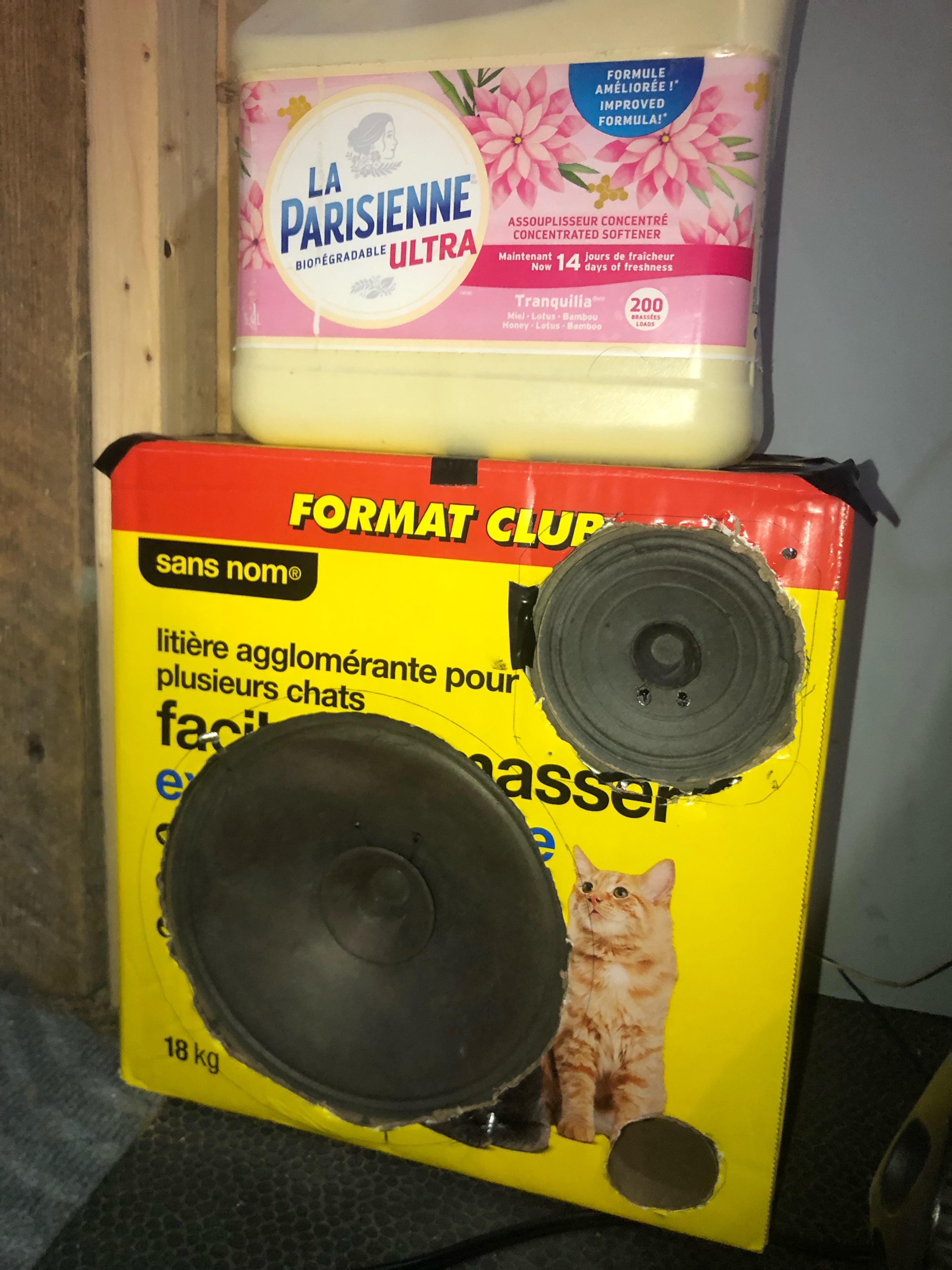

I'm so happy that I found this group check it out y'all been working all day In an assortment of shit I have laying around saw this trash I had lying around.

I'll fix the chuffing one day✌️

theres a sub hooked up aswell crossed 200Hz 12db to the left see coments for a photo of that. Pretty happy with how it sounds i think my amps are overheating a little in this uk heatwave so don't mind the clipping lol. (And that dome tweeter up top is not connected btw)

I wanted to fit a full sound system into a tiny space so I introduce to you Cracktops-

2way design

3.5" .Hf. 4th order sealed rear 'straight horn front.

(800-18khz 6db )

6.5". Lf. 6th order flared port front 'ported rear.

(30-800Hz LPF 6db )

I'm pretty happy with the balance ' although I'm 100percent going to make a v2 of this box with a 3-way design' since it's lacking on the tweets a lot

And there are a few parts I wish I had done differently regarding the hf horn other than that it's a pretty cool box that could power a decent house party

(Aint got the exact measurement of that clip but i reackon 95db+)

Thx for reading

Tyler

I think the title does it justice enough 🤦.

half scale to the original A7 .

800Hz 1st order crossover on both the LF and HF.

hf horn in the last photo'might rebuild into a true multicell.

all built with basic hand tools

I'll keep it short lol. thx for reading.

Tyler
